Eagle

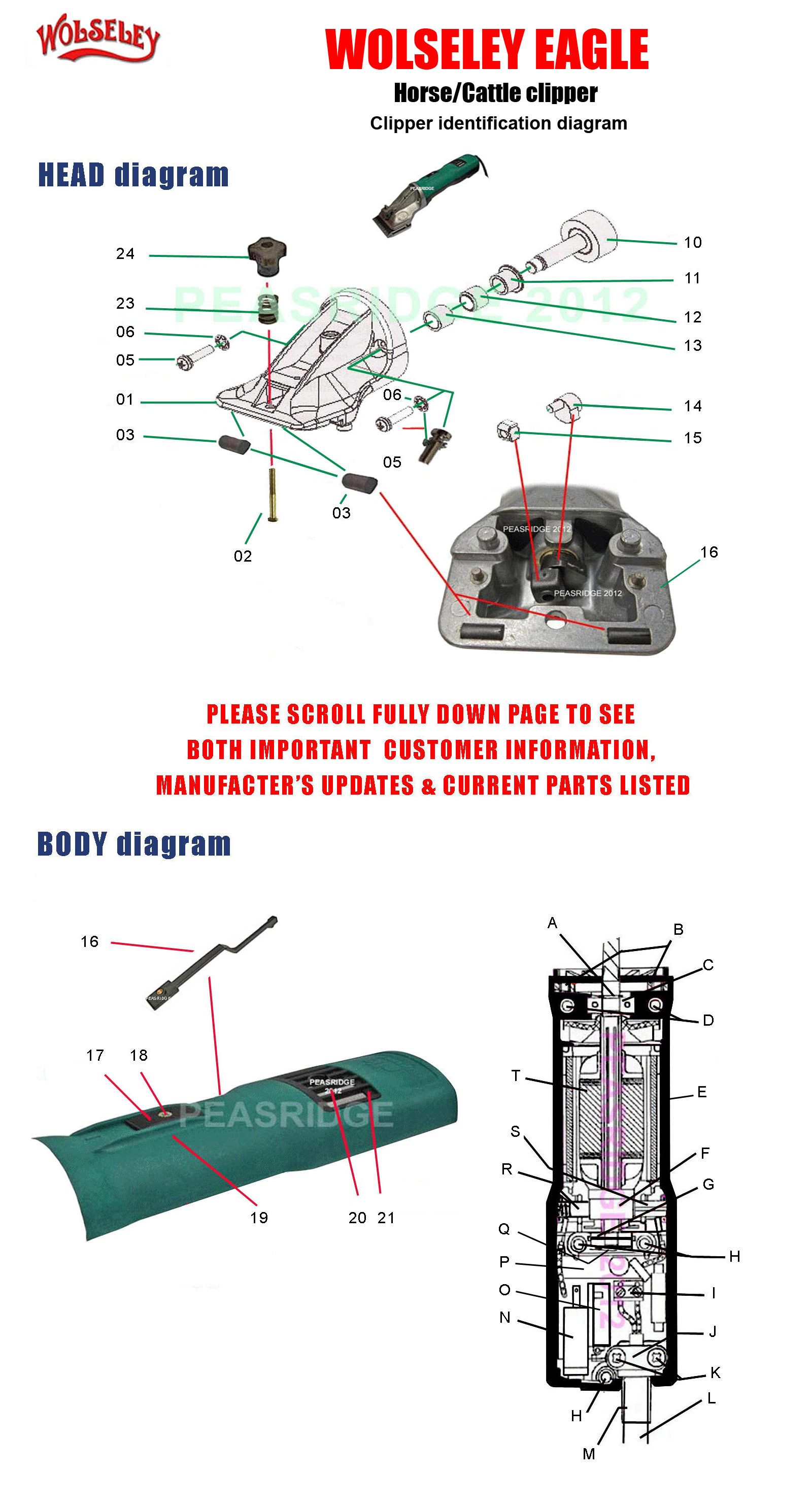

Parts diagram

Customer information

IMPORTANT – CUSTOMERS INFORMATION
This page is under constant construction with new parts being added. Please also note any manufacturer’s updates as listed

Always scroll FULLY down the page to see both updates and current parts listed

Some pages may only show a limited number of parts – you will need to CLICK “View All” (See the top of the page above the diagram or at the bottom of each page)

If you require further advice please contact us.

E-mail:
sales@showtime-supplies.co.uk

Telephone:
UK Mainland: 01759 368588
Overseas: 0044 1759 368588

Product items such as ADAPTERS, BATTERIES & CHARGER UNITS are listed under CLIPPER ACCESSORIES
See STORE SELECTIONS on the LHS of your screen

ORDERING PARTS
Please have details relating to make and model of machine, as well as applicable part or diagram identification numbers to hand. Failure to do this may result in errors in the parts ordered/supplied.

TRADE – DISCOUNTS
Trade discounted prices are available on all parts to bona fide trade repair businesses. Please contact us for further information

SHIPPING
We make every effort to ship parts the same day for next day delivery on the UK Mainland

INTERNATIONAL SHIPPING
We ship worldwide daily.

MANUFACTURER’S UPDATES
<b
The Wolseley “Eagle” is sold branded as a Wolseley product but is manufactured by Hauptner and is essentially the Hauptner 3000 horse/cattle clipper
(There may alterations to some upper body casing to embrace the Wolseley logo and identification plates)

June 2010
Tension bolt

Hauptner engineers have changed the shape of the Hauptner tension bolt head which now replaces the tension bolt as as previously used on production models of the 2000 & 3000 models. The new style bolt instead of being round headed as previously supplied has been changed to an oblong shaped head. This enabling both the comb and cutter blades to be removed without fully havingun-screw the tension nut, remove both the spring and bolt, before removing the blades.

When inserting the new type tension bolt you should turn it from the “horizontal” position to a “vertical” position, which enables it when tightened, to grip the side plates of the comb blade . (This can be seen in the video clip on the Hauptner 2000 Plus clipper page – SEE CLIPPERS – Heavy duty – Hauptner 2000 Plus)

May 2015
Tension nuts

Until the Hauptner factory reduces the currently held stock of tension nuts, plastic grey tension nuts will be supplied to replace the current metal tension nut as normally supplied under part number: 86831.050

Showing 1–16 of 31 results

Showing 1–16 of 31 results
